| Part number: | 3609/12 100 |

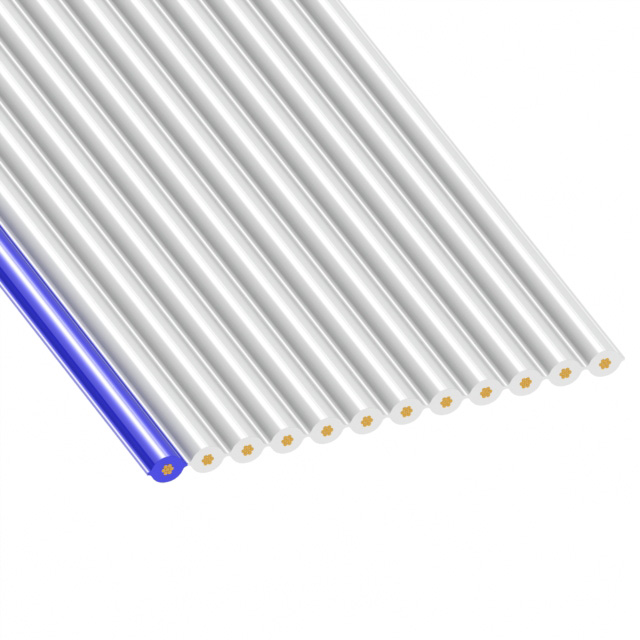

| Description: | CABLE RIBBON 12COND 0.025 WHITE |
| Manufacturer | 3M |
| Encapsulation | Spool |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Length | 100.0' (30.48m) |
| Wire Gauge | 30 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Strand | 7 Strands / 38 AWG |
| Pitch | 0.025" (0.64mm) |
| Operating Temperature | -55°C ~ 150°C |
| Number of Conductors | 12 |
| Cable Type | Flat Cable |
| Ratings | UL Style 20726 |
| Conductor Material | Copper, Silver Coated |
| Jacket Color | White |
| Insulation Resistance | 10GOhm |
| Ribbon Thickness | 0.024" (0.61mm) |
| First Conductor Mark | Blue |
| Voltage | 150 V |
|
