| Part number: | 3770/14 100 |

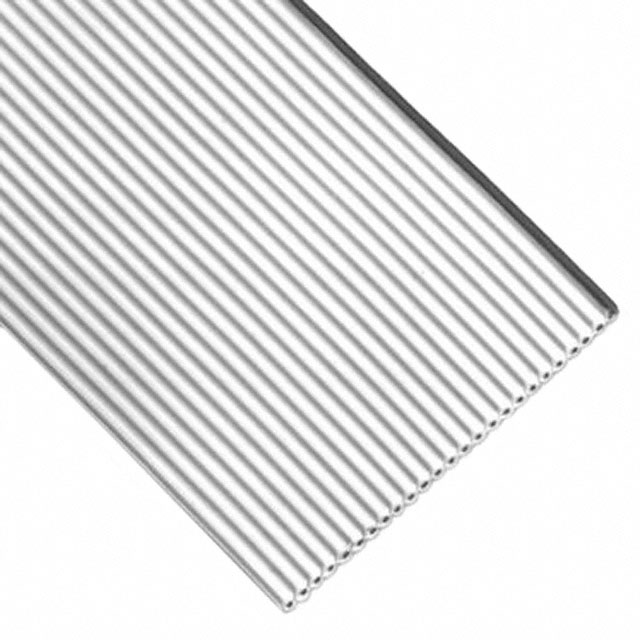

| Description: | CABLE RIBBON 14COND 0.05 GRAY |
| Manufacturer | 3M |
| Encapsulation | Spool |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Zippable |
| Length | 100.0' (30.48m) |
| Wire Gauge | 26 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Conductor Strand | 7 Strands / 34 AWG |
| Pitch | 0.050" (1.27mm) |
| Operating Temperature | -40°C ~ 105°C |
| Number of Conductors | 14 |
| Cable Type | Flat Cable |
| Ratings | UL Style 20297 |
| Conductor Material | Copper, Tinned |
| Jacket Color | Gray |
| Insulation Resistance | 10GOhm |
| Ribbon Thickness | 0.039" (0.99mm) |
| Ribbon Width | 0.700" (17.78mm) |
| First Conductor Mark | Blue |
| Voltage | 300 V |
|
