| Part number: | 8132/08 100 |

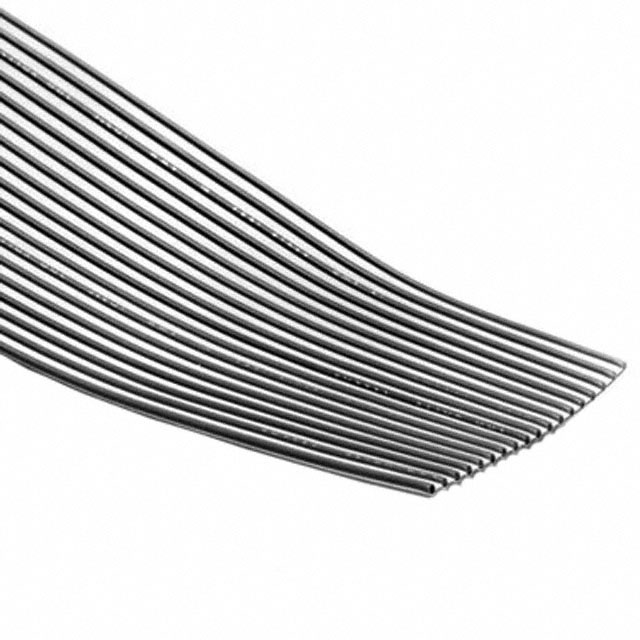

| Description: | CABLE RIBN 8COND 0.156 GRAY |
| Manufacturer | 3M |
| Encapsulation | Spool |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Zippable |
| Length | 100.0' (30.48m) |
| Wire Gauge | 18 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Strand | 19 Strands / 30 AWG |
| Pitch | 0.156" (3.96mm) |
| Operating Temperature | -20°C ~ 80°C |
| Number of Conductors | 8 |
| Cable Type | Flat Cable |
| Ratings | UL E42769 |
| Conductor Material | Copper, Tinned |
| Jacket Color | Gray |
| Insulation Resistance | 10GOhm |
| Ribbon Thickness | 0.077" (1.96mm) |
| Ribbon Width | 1.188" (30.18mm) |
| First Conductor Mark | Red |
| Voltage | 300 V |
|
