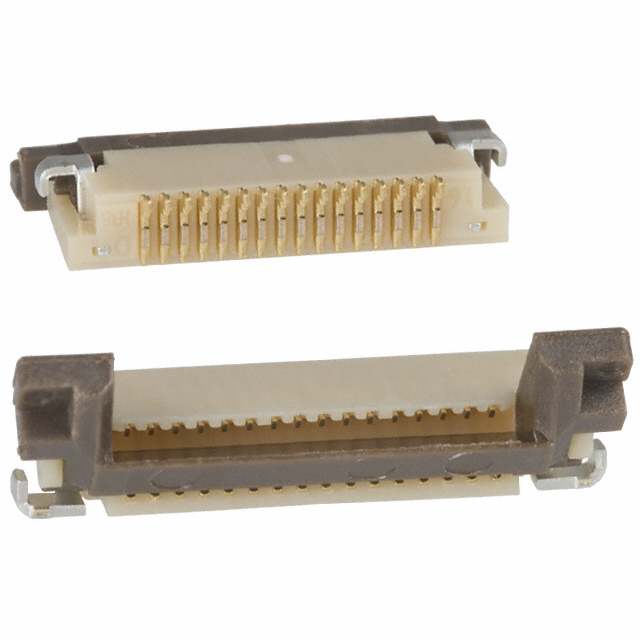

| Part number: | FH12A-16S-0.5SH(55) |
| Description: | CONN FFC FPC TOP 16POS 0.5MM R/A |
| Manufacturer | Hirose Electric Co., Ltd. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hirose Electric Co., Ltd." |
| Features | Zero Insertion Force (ZIF) |
| Contact Finish | Gold |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Pitch | 0.020" (0.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Polyamide (PA), Nylon |
| Cable End Type | Straight |
| Housing Color | Beige |
| Actuator Color | Brown |
| Mating Cycles | 20 |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Top |
|
