| Part number: | 1-84952-4 |

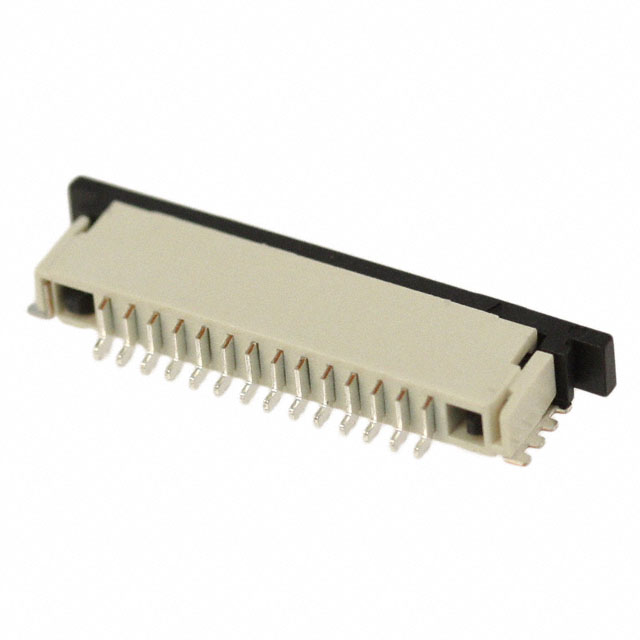

| Description: | CONN FPC BOTTOM 14POS 1MM R/A |
| Manufacturer | TE Connectivity AMP Connectors |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity AMP Connectors" |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Finish | Tin |
| Voltage Rating | 200V |
| Current Rating (Amps) | 1A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 14 |
| Pitch | 0.039" (1.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.101" (2.56mm) |
| Contact Finish Thickness | 78.7µin (2.00µm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Cable End Type | Straight |
| Housing Color | Natural |
| Actuator Color | Black |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
|
