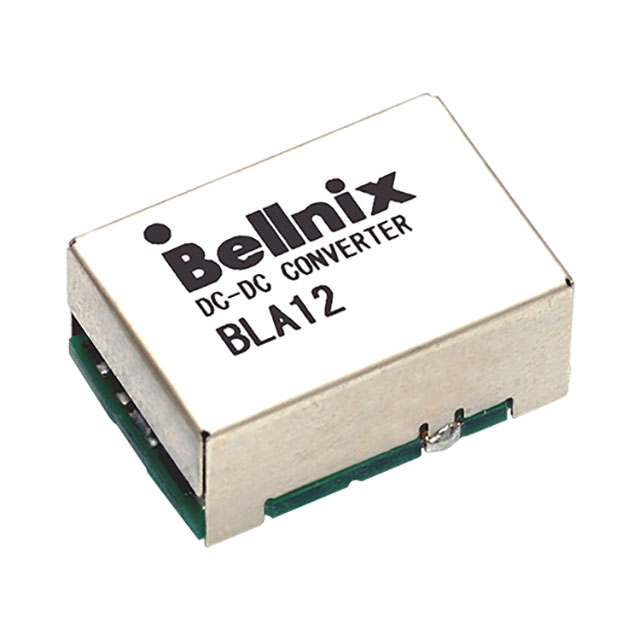

| Part number: | BLA12-12W06 |
| Description: | DC DC CONVERTER +/-12V 1.4W |
| Manufacturer | Bellnix Co., LTD. |
| Encapsulation | Bulk |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bellnix Co., LTD." |
| Features | Adjustable Output, Remote On/Off |
| Package / Case | 7-SMD Module |
| Size / Dimension | 0.80" L x 0.55" W x 0.38" H (20.3mm x 14.0mm x 9.7mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 18V |
| Efficiency | 82% |
| Current - Output (Max) | 60mA, 60mA |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Power (Watts) | 1.4 W |
| Number of Outputs | 2 |
| Voltage - Isolation | 500 V |
|
