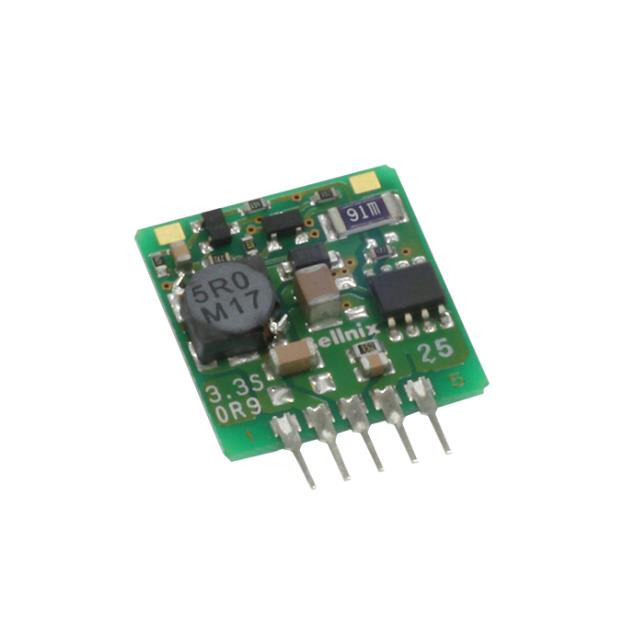

| Part number: | BUP-3.3S0R9 |
| Description: | DC DC CONVERTER 3.3V 3W |
| Manufacturer | Bellnix Co., LTD. |
| Encapsulation | Bulk |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bellnix Co., LTD." |
| Features | Adjustable Output, Remote On/Off |
| Package / Case | 5-SIP Module |
| Size / Dimension | 0.80" L x 0.27" W x 0.94" H (20.2mm x 6.8mm x 24.0mm) |
| Mounting Type | Through Hole |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 4.2V |
| Efficiency | 82% |
| Current - Output (Max) | 900mA |
| Voltage - Input (Min) | 1.3V |
| Voltage - Output 1 | 3.3V |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
|
