| Part number: | 1546234-1 |

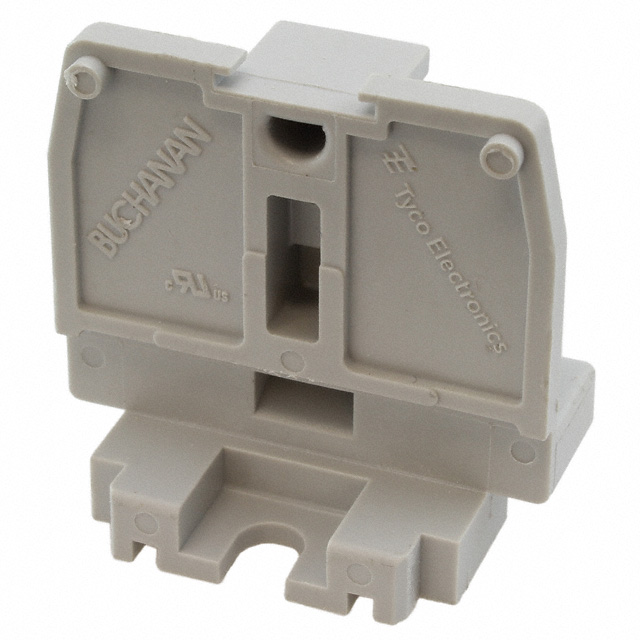

| Description: | TERM BLK NEMA 2POS 10.85MM GRAY |
| Manufacturer | TE Connectivity AMP Connectors |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity AMP Connectors" |
| Mounting Type | Direct Mount |
| Length | 1.231" (31.27mm) |
| Type | NEMA Open Construction |
| Operating Temperature | 150°C |
| Termination Style | Tubular Clamp |
| Material - Insulation | Polyester |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 10.9mm |
| Wire Gauge or Range - AWG | 10-22 AWG |
| Height (Max) | 1.225" (31.12mm) |
| Housing Color | Gray |
| Current - UL | 30 A |
| Voltage - UL | 600 V |
| Number of Positions | 2 |
|
