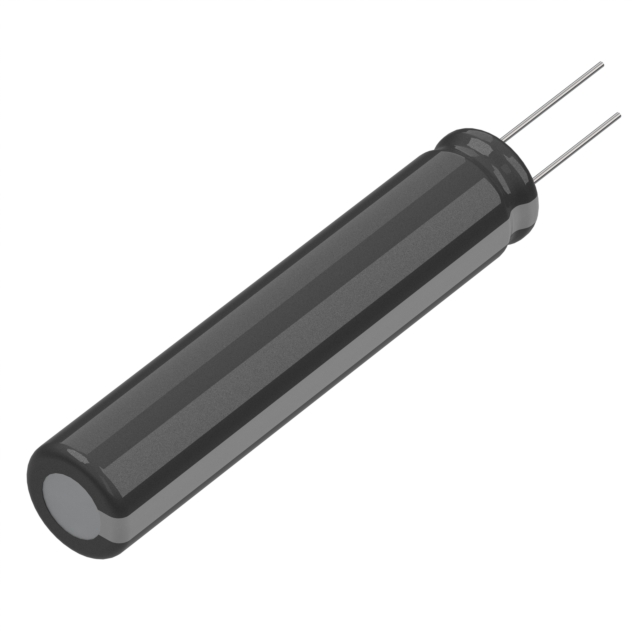

| Part number: | 400TXW22MEFR8X40 |
| Description: | CAP ALUM 22UF 20% 400V RADIAL TH |
| Manufacturer | Rubycon |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Height - Seated (Max) | 1.673" (42.50mm) |
| Capacitance | 22 µF |
| Voltage - Rated | 400 V |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 390 mA @ 100 kHz |
|
