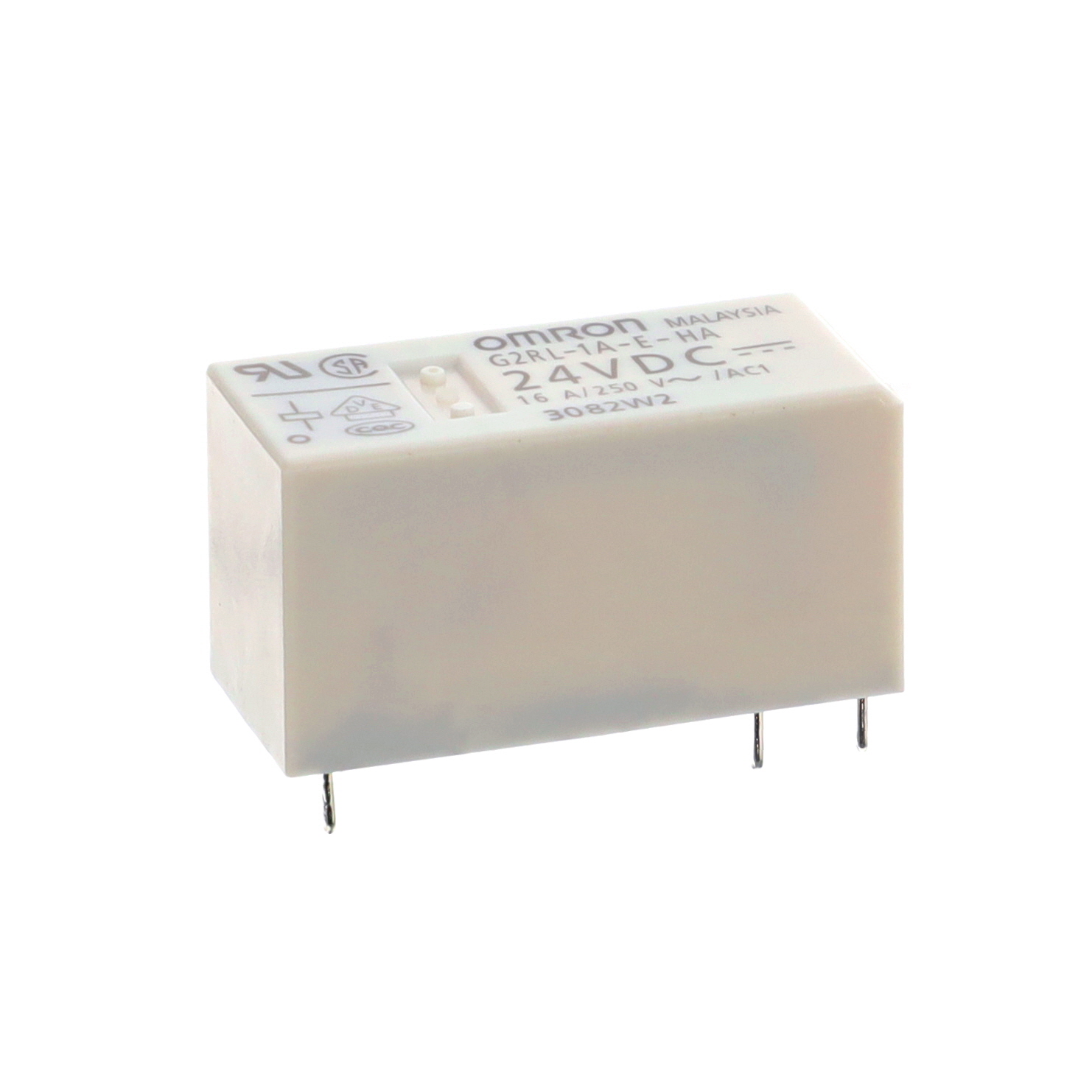

| Part number: | G2RL-1A-E-HA DC24 BY OMB |
| Description: | RELAY GEN PURPOSE SPST 16A 24V |
| Manufacturer | Omron Electronic Components |
| Encapsulation | Tube |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Omron Electronic Components" |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 440VAC, 300VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 16.8 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Coil Resistance | 1.44 kOhms |
| Load - Max Switching | 7040VA, 4800W |
|
