| Part number: | MKP1W032207F00KSSD |

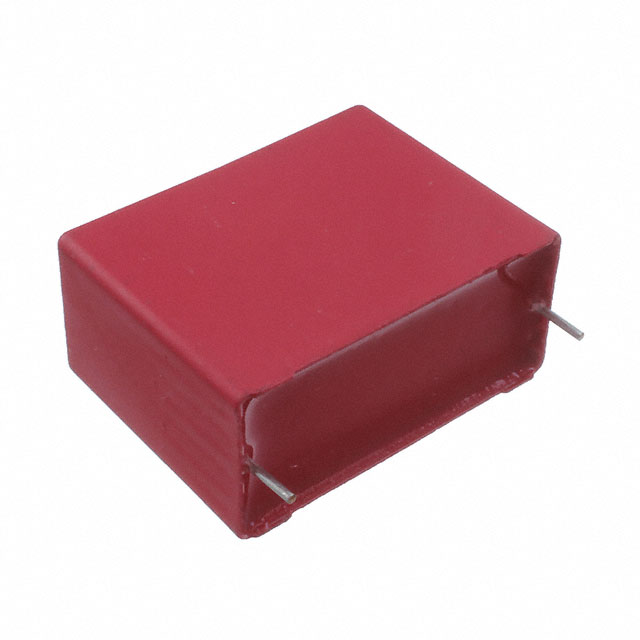

| Description: | CAP FILM 0.22UF 10% 3KVDC RADIAL |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 140 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 110°C |
| Applications | High Pulse, DV/DT |
| Lead Spacing | 1.476" (37.50mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 3000V (3kV) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Capacitance | 0.22 µF |
| Size / Dimension | 1.634" L x 0.748" W (41.50mm x 19.00mm) |
|
