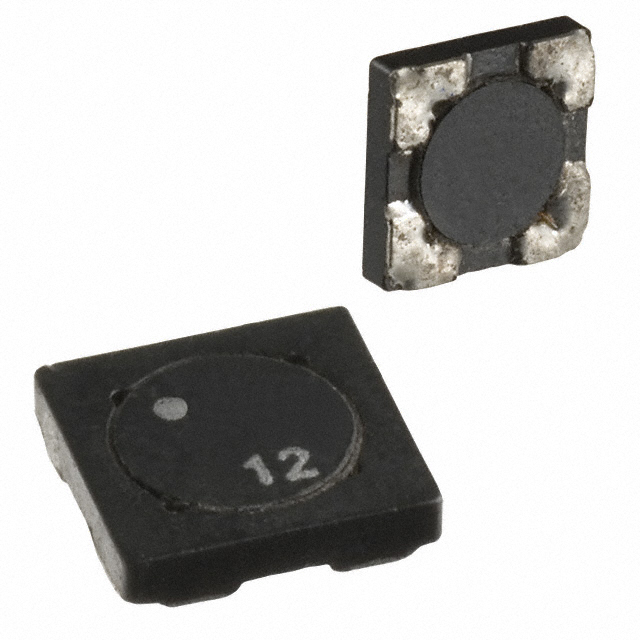

| Part number: | SDQ12-1R0-R |
| Description: | INDUCT ARRAY 2 COIL 810NH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.047" (1.19mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 3.24 µH |
| Inductance - Connected In Parallel | 810 nH |
| Current Rating - Parallel | 2.49 A |
| Current Rating - Series | 1.25 A |
| Current Saturation - Parallel | 3.38 A |
| Current Saturation - Series | 1.69 A |
| DC Resistance (DCR) - Parallel | 40.3mOhm |
| DC Resistance (DCR) - Series | 161.1mOhm |
|
