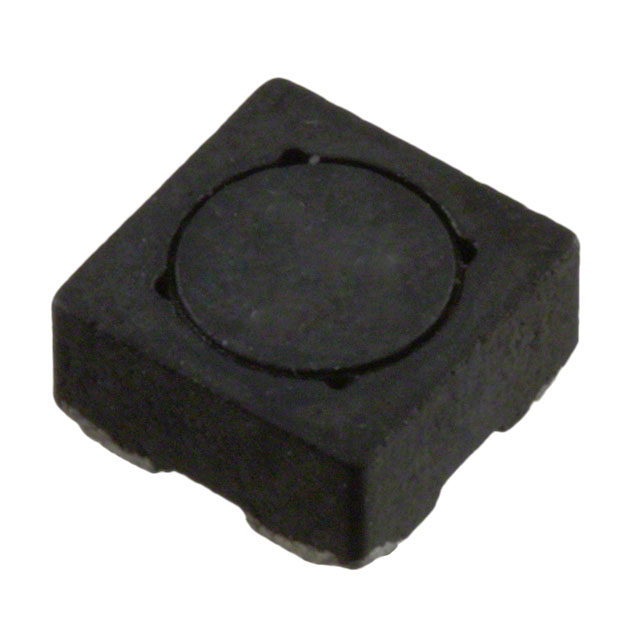

| Part number: | SDQ25-820-R |
| Description: | INDUCT ARRAY 2 COIL 81.61UH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2900 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.098" (2.50mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 326.4 µH |
| Inductance - Connected In Parallel | 81.61 µH |
| Current Rating - Parallel | 580 mA |
| Current Rating - Series | 290 mA |
| Current Saturation - Parallel | 446 mA |
| Current Saturation - Series | 223 mA |
| DC Resistance (DCR) - Parallel | 743.5mOhm |
| DC Resistance (DCR) - Series | 2.97Ohm |
|
