| Part number: | 0906-2-15-20-75-14-11-0 |

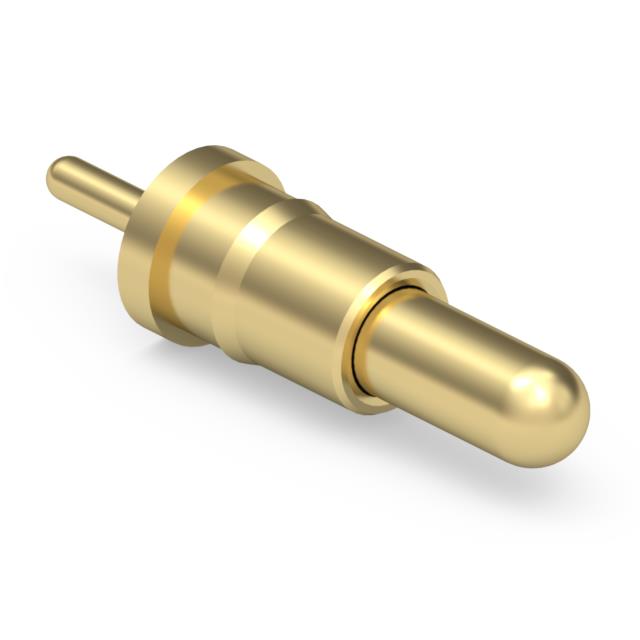

| Description: | CONTACT SPRING LOADED T/H GOLD |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 25000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Gold |
| Current Rating (Amps) | 5.2A |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Brass Alloy |
| Mating Cycles | 1000000 |
| Maximum Working Height | 0.197" (5.00mm) |
| Recommended Working Height | 0.169" (4.30mm) |
| Minimum Working Height | 0.142" (3.60mm) |
| Pad Layout Dimension | Circular - 0.072" (1.83mm) (TH) |
| Plunger Size | 0.042" (1.07mm) Dia |
| Operating Force - Initial | 10gf |
| Operating Force - Mid Compression | 60gf |
|
