| Part number: | RN2309,LF |
| Description: | TRANS PREBIAS PNP 50V 0.1A SC70 |
| Manufacturer | Toshiba Electronic Devices and Storage Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Toshiba Electronic Devices and Storage Corporation" |

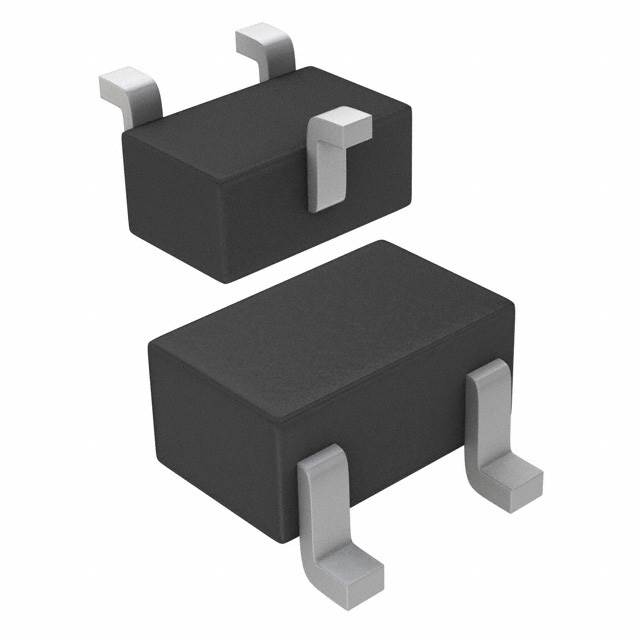

| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 10mA, 5V |
| Supplier Device Package | SC-70 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 100 mW |
| Frequency - Transition | 200 MHz |
| Resistor - Base (R1) | 47 kOhms |
| Resistor - Emitter Base (R2) | 22 kOhms |
|
