| Part number: | TVX1V471MCD1LZ |

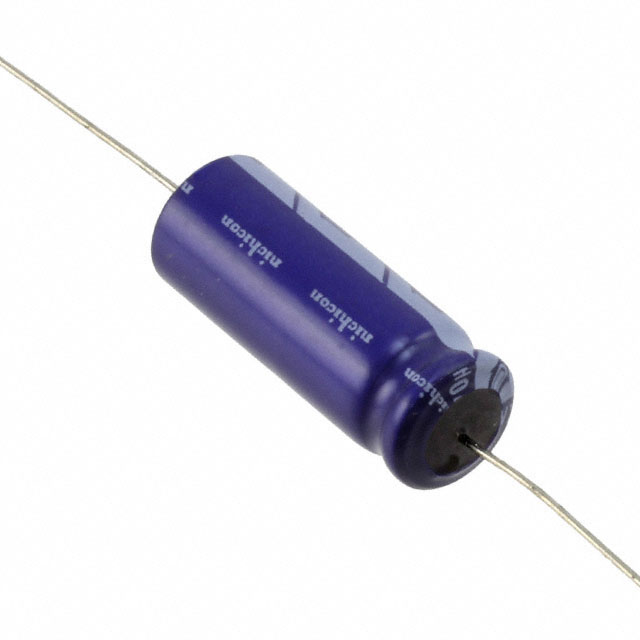

| Description: | CAP ALUM 470UF 20% 35V AXIAL |
| Manufacturer | Nichicon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Axial, Can |
| Size / Dimension | 0.394" Dia x 1.024" L (10.00mm x 26.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Capacitance | 470 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 610 mA @ 120 Hz |
| Ripple Current @ High Frequency | 915 mA @ 10 kHz |
|
