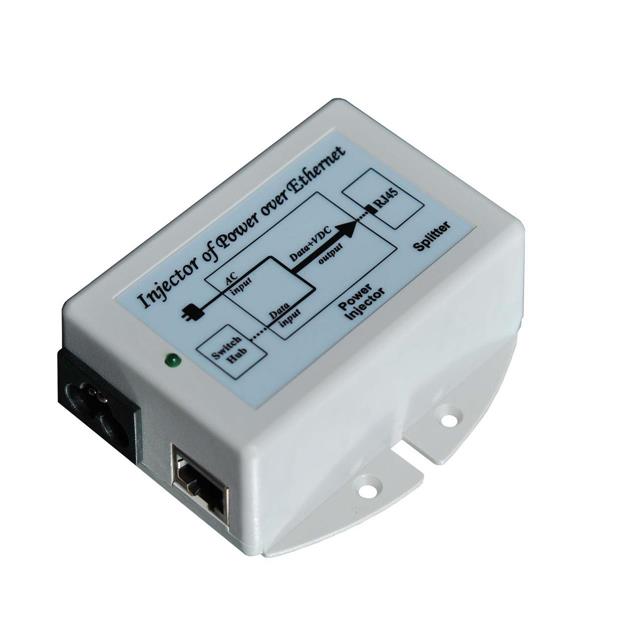

| Part number: | TP-POE-48 |
| Description: | 48V 18W 10/100MB POE POWER INSER |
| Manufacturer | Tycon Systems Inc. |
| Encapsulation | Box |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Tycon Systems Inc." |
| Features | OCP, OVP, SCP |
| Size / Dimension | 3.40" L x 3.00" W x 1.40" H (86.4mm x 76.2mm x 35.6mm) |
| Voltage - Output | 48V |
| Mounting Type | Desktop |
| Voltage - Input | 90 ~ 264 VAC |
| Type | Passive Injector |
| Operating Temperature | -30°C ~ 60°C |
| Data Rate | 10/100 Mbps |
| Approval Agency | FCC, TUV |
| Efficiency | 85% |
| Power (Watts) - Per Port | 24W |
| Compliance | IEEE802.3af, IEEE802.3at |
| Current - Output | 500 mA |
| Number of Ports | 1 |
|
