| Part number: | B41866C7107M006 |

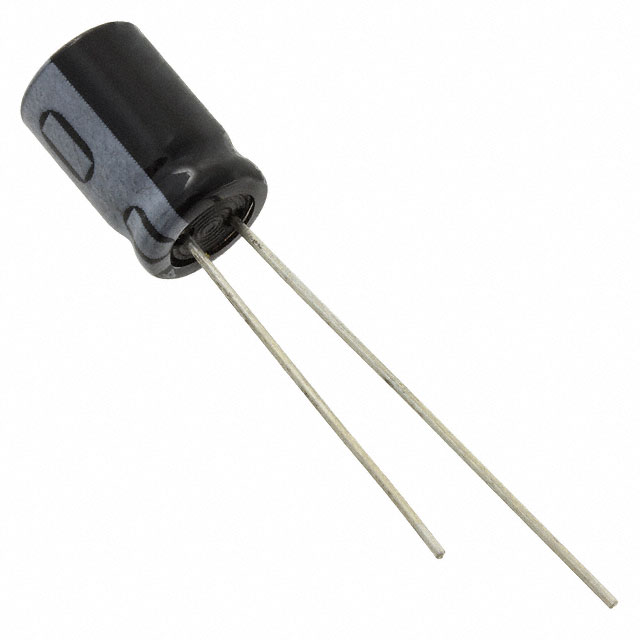

| Description: | CAP ALUM 100UF 20% 35V RADIAL |
| Manufacturer | TDK EPCOS |
| Encapsulation | Tape & Box (TB) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive |
| Lead Spacing | 0.138" (3.50mm) |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 646mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Capacitance | 100 µF |
| Voltage - Rated | 35 V |
| Impedance | 573 mOhms |
| Ripple Current @ High Frequency | 297 mA @ 100 kHz |
|
