| Part number: | B41858C3228M002 |

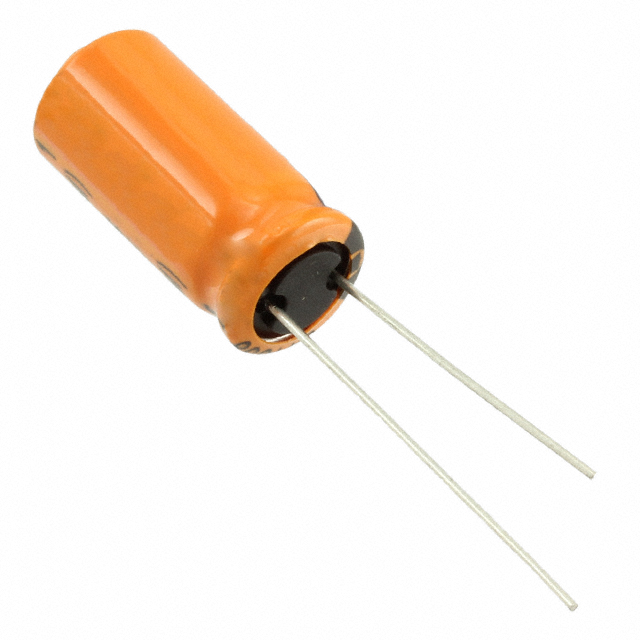

| Description: | CAP ALUM 2200UF 20% 10V RADIAL |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 1050 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive |
| Lead Spacing | 0.197" (5.00mm) |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 62mOhm @ 10kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Capacitance | 2200 µF |
| Voltage - Rated | 10 V |
| Impedance | 60 mOhms |
| Ripple Current @ High Frequency | 1.396 A @ 100 kHz |
|
