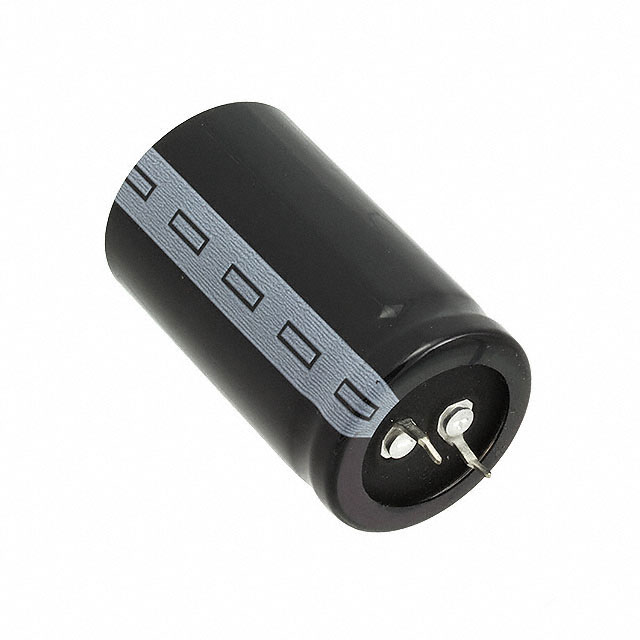

| Part number: | B43634A9477M000 |
| Description: | CAP ALUM 470UF 20% 400V SNAP |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 260 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 230mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 85°C |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Capacitance | 470 µF |
| Voltage - Rated | 400 V |
| Impedance | 350 mOhms |
| Ripple Current @ Low Frequency | 2.65 A @ 100 Hz |
|
