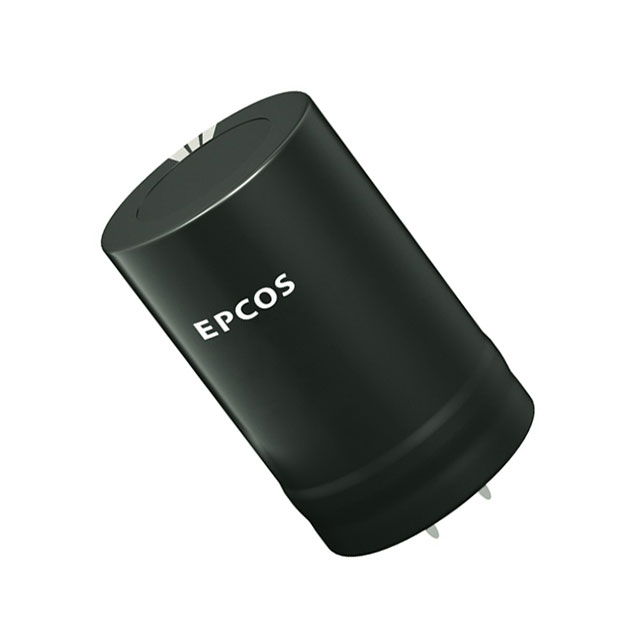

| Part number: | B43624C2128M000 |
| Description: | CAP ALUM 1200UF 20% 200V SNAP |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 120 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 110mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 85°C |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Capacitance | 1200 µF |
| Voltage - Rated | 200 V |
| Impedance | 170 mOhms |
| Ripple Current @ Low Frequency | 3.24 A @ 100 Hz |
|
