| Part number: | B43703B4189M000 |

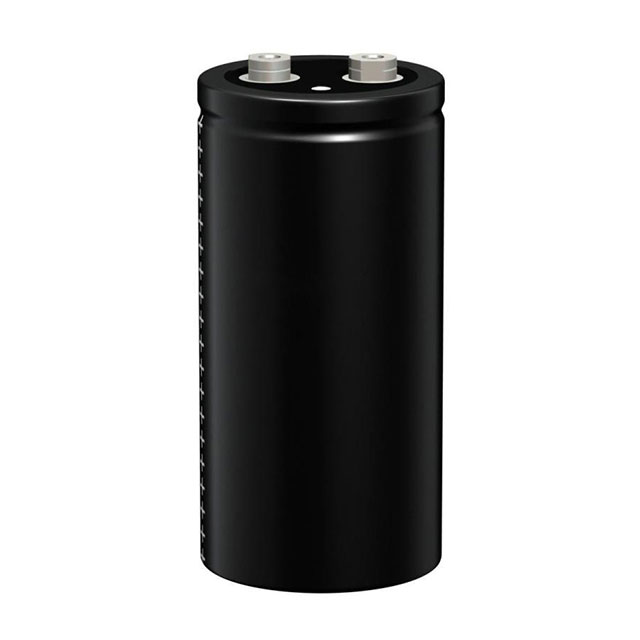

| Description: | CAP ALUM 18000UF 20% 350V SCREW |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 18 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.248" (31.70mm) |
| ESR (Equivalent Series Resistance) | 4.4mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Height - Seated (Max) | 6.732" (171.00mm) |
| Capacitance | 18000 µF |
| Voltage - Rated | 350 V |
| Impedance | 7.4 mOhms |
| Ripple Current @ Low Frequency | 36.3 A @ 100 Hz |
|
