| Part number: | B43544E5477M007 |

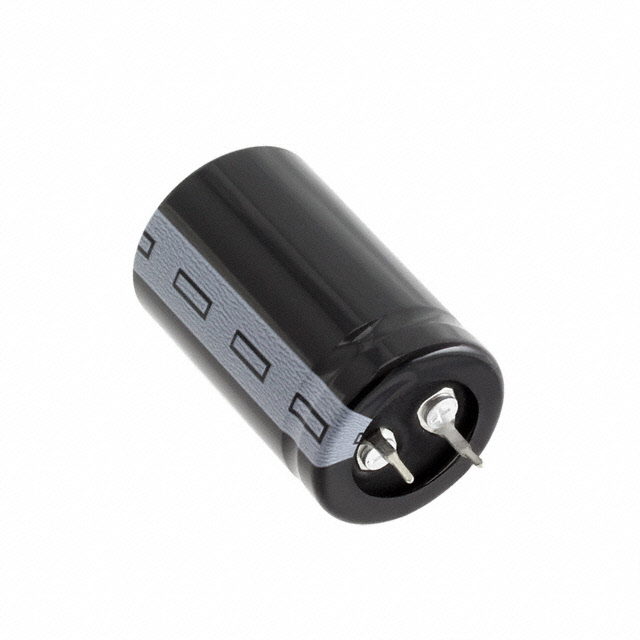

| Description: | CAP ALUM 470UF 20% 450V SNAP |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 120 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 210mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Capacitance | 470 µF |
| Voltage - Rated | 450 V |
| Impedance | 330 mOhms |
| Ripple Current @ Low Frequency | 2.83 A @ 100 Hz |
|
