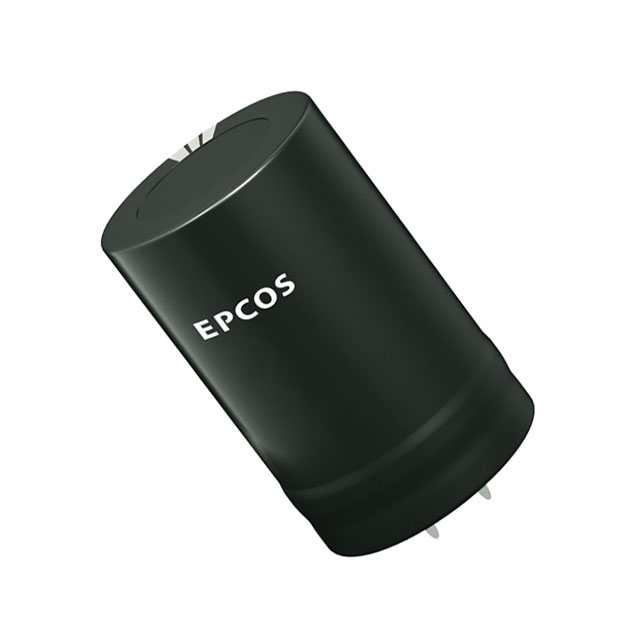

| Part number: | B43630A9108M000 |
| Description: | CAP ALUM 1000UF 20% 400V SNAP |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 130mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Capacitance | 1000 µF |
| Voltage - Rated | 400 V |
| Impedance | 200 mOhms |
| Ripple Current @ Low Frequency | 3.94 A @ 100 Hz |
|
