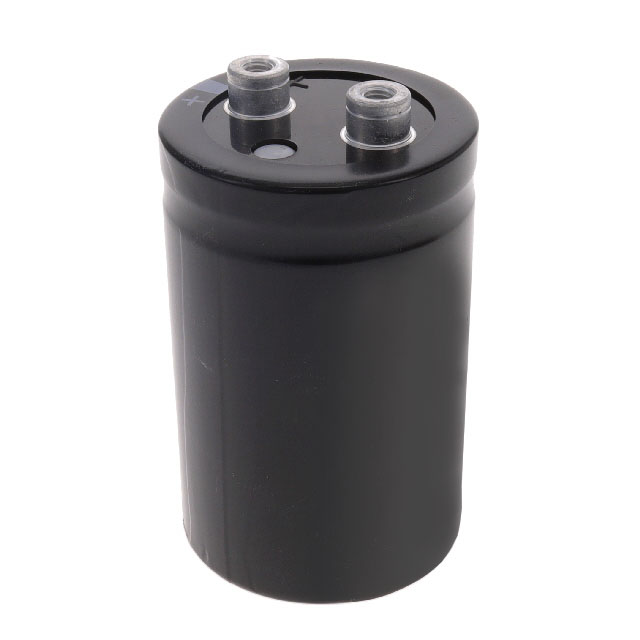

| Part number: | B43742A6278M000 |
| Description: | CAP ALUM 2700UF 20% 500V SCREW |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.531" Dia (64.30mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 1.122" (28.50mm) |
| ESR (Equivalent Series Resistance) | 30mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Capacitance | 2700 µF |
| Voltage - Rated | 500 V |
| Impedance | 45 mOhms |
| Ripple Current @ Low Frequency | 9.84 A @ 100 Hz |
|
