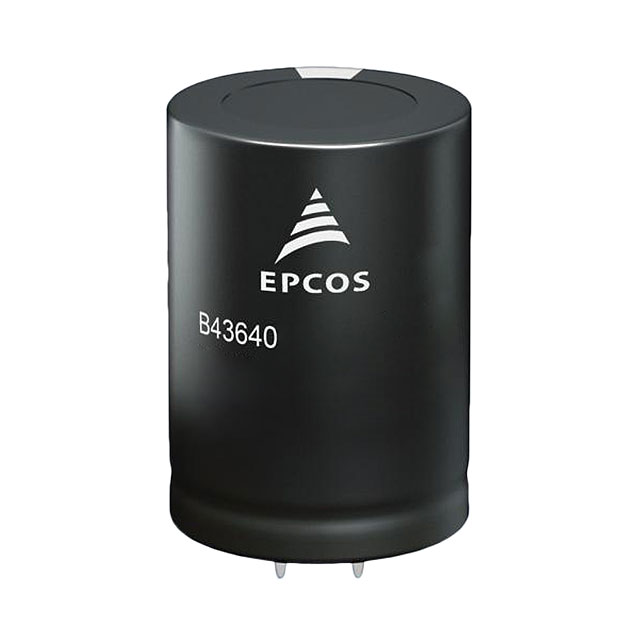

| Part number: | B43640E5277M000 |
| Description: | CAP ALUM 270UF 20% 450V SNAP |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 160 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 380mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Capacitance | 270 µF |
| Voltage - Rated | 450 V |
| Impedance | 570 mOhms |
| Ripple Current @ Low Frequency | 1.34 A @ 100 Hz |
|
