| Part number: | B43701B9478M000 |

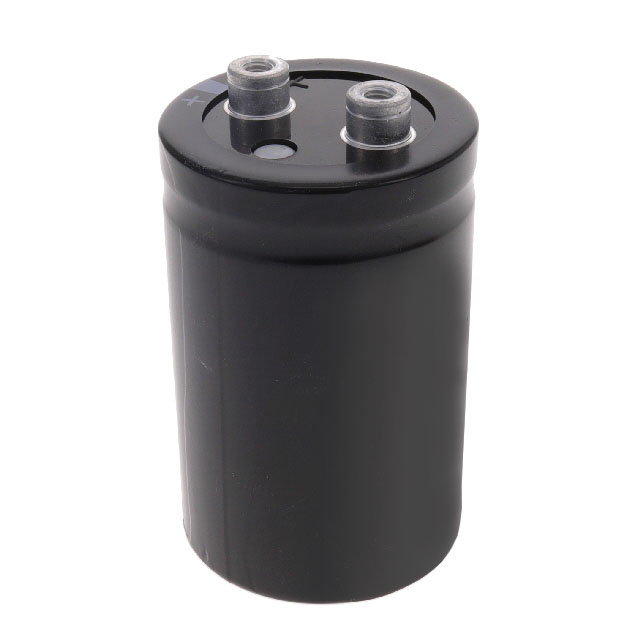

| Description: | CAP ALUM 4700UF 20% 400V SCREW |
| Manufacturer | TDK EPCOS |
| Encapsulation | Bulk |
| Quantity | 32 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.248" (31.70mm) |
| ESR (Equivalent Series Resistance) | 28mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Height - Seated (Max) | 3.846" (97.70mm) |
| Capacitance | 4700 µF |
| Voltage - Rated | 400 V |
| Impedance | 50 mOhms |
| Ripple Current @ Low Frequency | 13.4 A @ 100 Hz |
|
