| Part number: | TR-0603HV750-R |

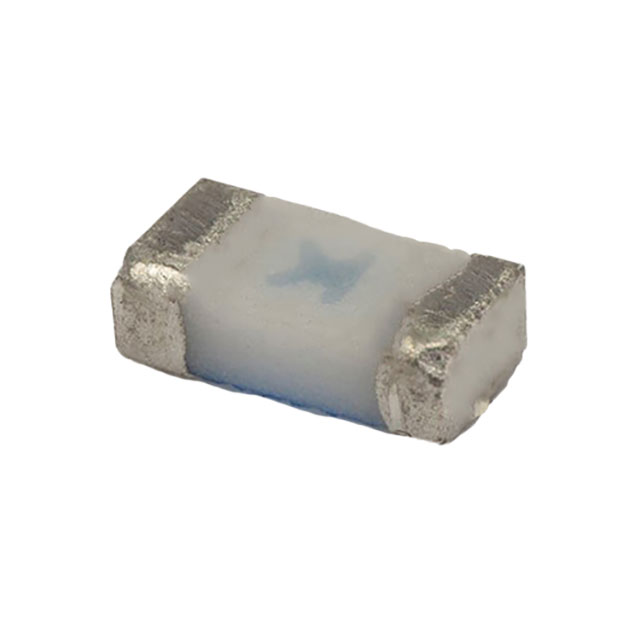

| Description: | FUSE BOARD MNT 750MA 63VDC 0603 |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | CQC, UL |
| DC Cold Resistance | 0.51 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 750 mA |
| Voltage Rating - DC | 63 V |
| Melting I²t | 0.003 |
|
