| Part number: | 8-1437652-6 |

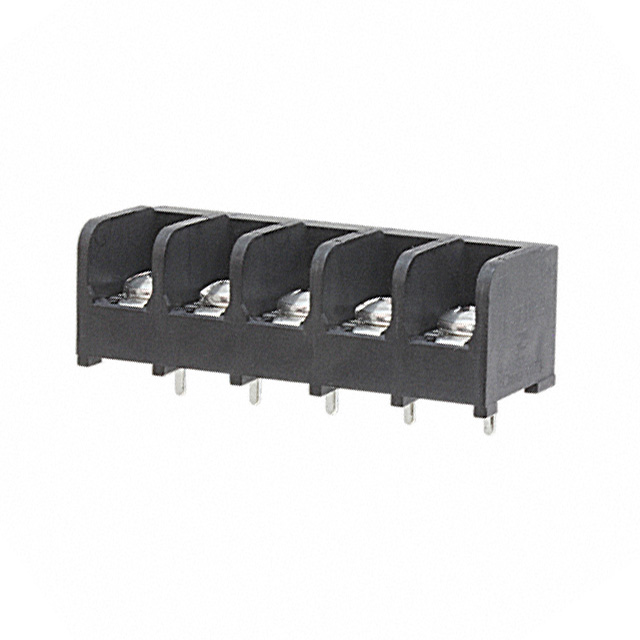

| Description: | CONN BARRIER STRIP 5CIRC 0.375" |
| Manufacturer | TE Connectivity AMP Connectors |
| Encapsulation | Bulk |
| Quantity | 210 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity AMP Connectors" |
| Color | Black |
| Voltage Rating | 300V |
| Current Rating (Amps) | 25A |
| Mounting Type | Through Hole |
| Wire Gauge | 12-22 AWG |
| Pitch | 0.375" (9.53mm) |
| Number of Rows | 1 |
| Operating Temperature | 105°C |
| Terminal Block Type | Barrier Block |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Terminal Screw Material | Steel, Stainless |
| Top Termination | Screws |
| Bottom Termination | PC Pin |
| Barrier Type | 3 Wall (Tri) |
| Number of Circuits | 5 |
| Number of Wire Entries | 5 |
|
