| Part number: | IRFU1010ZPBF |
| Description: | MOSFET N-CH 55V 42A IPAK |
| Manufacturer | International Rectifier |
| Encapsulation | Tube |
| Quantity | 562 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "International Rectifier" |

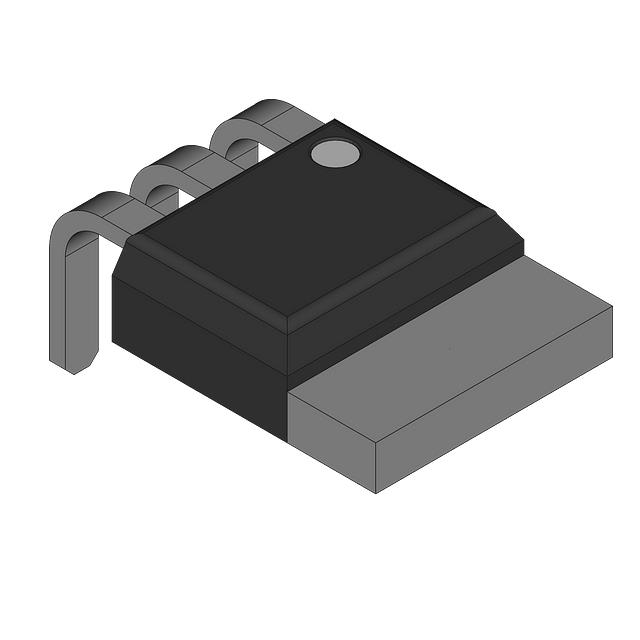

| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 42A (Tc) |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 42A, 10V |
| Power Dissipation (Max) | 140W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 100µA |
| Supplier Device Package | IPAK (TO-251AA) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 55 V |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2840 pF @ 25 V |
|
