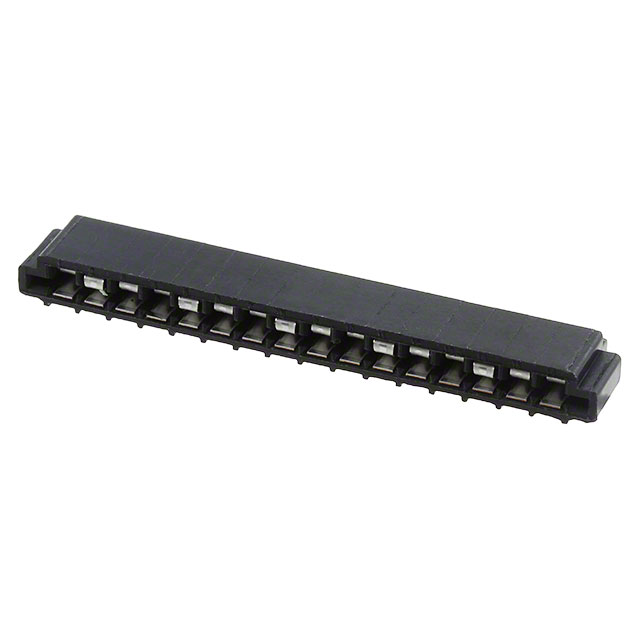

| Part number: | 6-520314-6 |
| Description: | CONN FFC FPC TOP 16POS 2.54MM RA |
| Manufacturer | TE Connectivity AMP Connectors |
| Encapsulation | Tray |
| Quantity | 90 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity AMP Connectors" |
| Contact Finish | Tin |
| Voltage Rating | 250V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Pitch | 0.100" (2.54mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Kinked Pin |
| Height Above Board | 0.190" (4.83mm) |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| Cable End Type | Straight |
| Housing Color | Black |
| Mating Cycles | 25 |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Top |
|
