| Part number: | UCC3580N-1G4 |
| Description: | SWITCHING CONTROLLER |
| Manufacturer | Unitrode |
| Encapsulation | Tube |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Unitrode" |

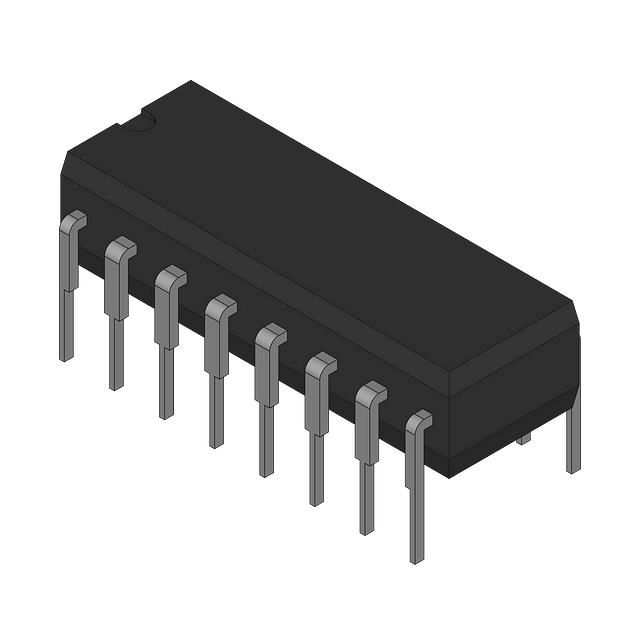

| Package / Case | 16-DIP (0.300", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Up/Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz |
| Topology | Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 16V |
| Supplier Device Package | 16-PDIP |
| Synchronous Rectifier | No |
| Control Features | Enable, Ramp, Soft Start |
| Output Phases | 1 |
| Duty Cycle (Max) | 66% |
| Clock Sync | No |
| Number of Outputs | 2 |
|
