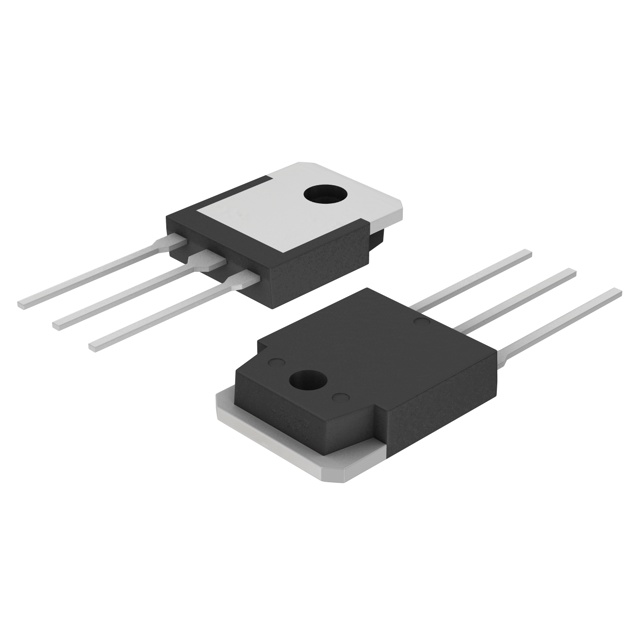

| Part number: | FGA120N30DTU |
| Description: | IGBT 300V 120A 290W TO3P |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 21 ns |
| Vce(on) (Max) @ Vge, Ic | 1.4V @ 15V, 25A |
| Supplier Device Package | TO-3P |
| Gate Charge | 120 nC |
| Current - Collector (Ic) (Max) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Current - Collector Pulsed (Icm) | 300 A |
| Power - Max | 290 W |
|
