| Part number: | FGPF7N60RUFDTU |
| Description: | IGBT 600V 14A 41W TO220F |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

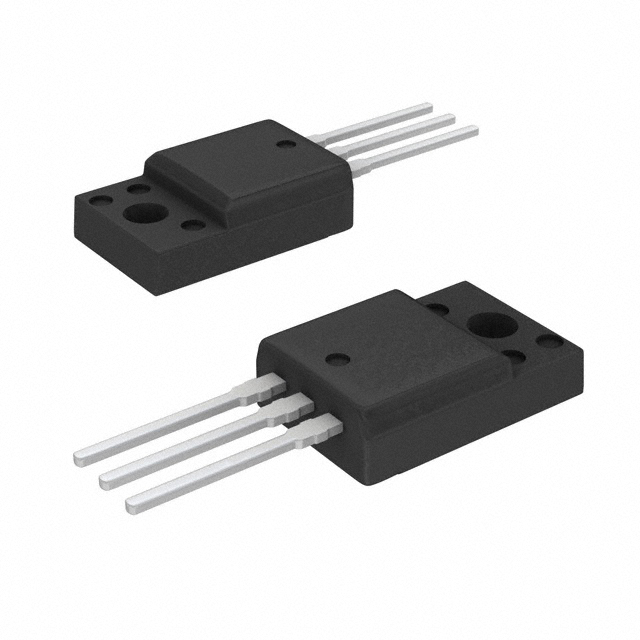

| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 65 ns |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 7A |
| Supplier Device Package | TO-220F-3 |
| Td (on/off) @ 25°C | 60ns/60ns |
| Switching Energy | 230µJ (on), 100µJ (off) |
| Test Condition | 300V, 7A, 30Ohm, 15V |
| Gate Charge | 24 nC |
| Current - Collector (Ic) (Max) | 14 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 21 A |
| Power - Max | 41 W |
|
