| Part number: | BT139-800E,127 |

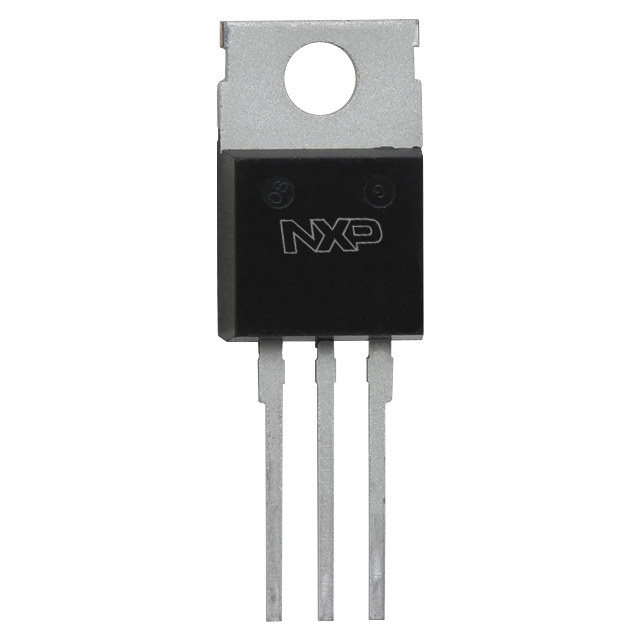

| Description: | TRIAC SENS GATE 800V 16A TO220AB |
| Manufacturer | WeEn Semiconductors Co., Ltd |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WeEn Semiconductors Co., Ltd" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | 125°C (TJ) |
| Current - Hold (Ih) (Max) | 45 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 155A, 170A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Supplier Device Package | TO-220AB |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Off State | 800 V |
|
