| Part number: | HEC4002BT,118 |
| Description: | IC GATE NOR 2CH 4-INP 14SO |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |

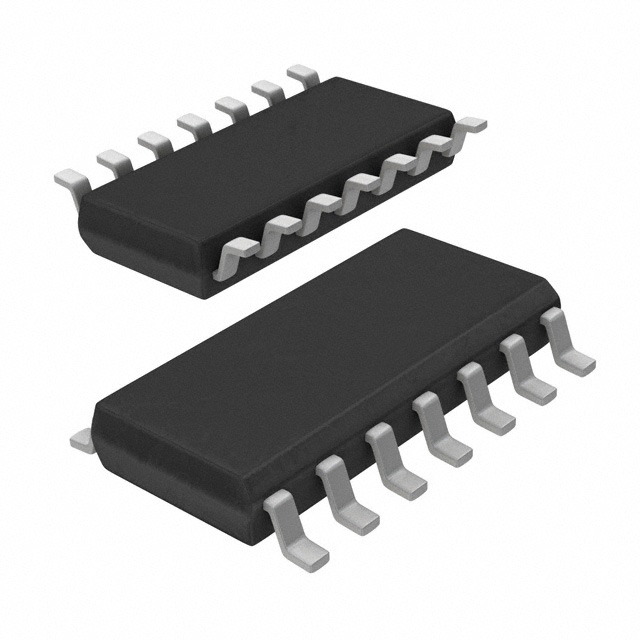

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NOR Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 15V |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Number of Inputs | 4 |
| Supplier Device Package | 14-SO |
| Input Logic Level - High | 3.5V ~ 11V |
| Input Logic Level - Low | 1.5V ~ 4V |
| Max Propagation Delay @ V, Max CL | 40ns @ 15V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 1 µA |
|
