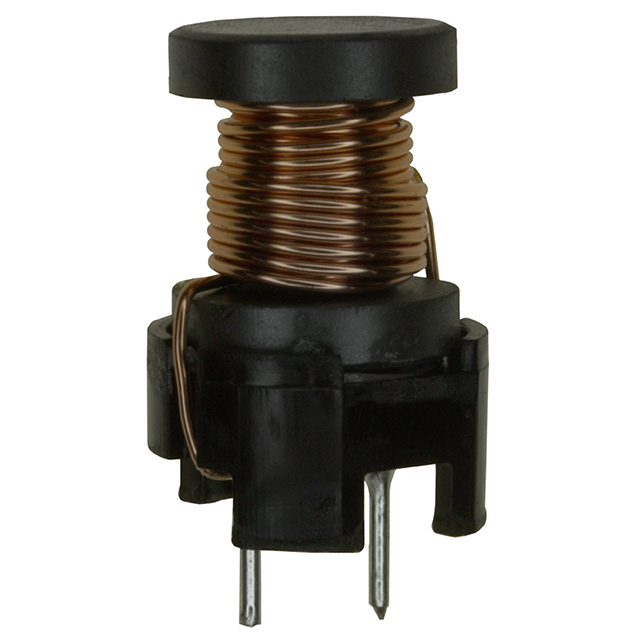

| Part number: | ELC-18E391 |
| Description: | FIXED IND 390UH 1.8A 120 MOHM TH |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±10% |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Size / Dimension | 0.748" Dia (19.00mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| DC Resistance (DCR) | 120mOhm |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Inductance | 390 µH |
| Current Rating (Amps) | 1.8 A |
|
