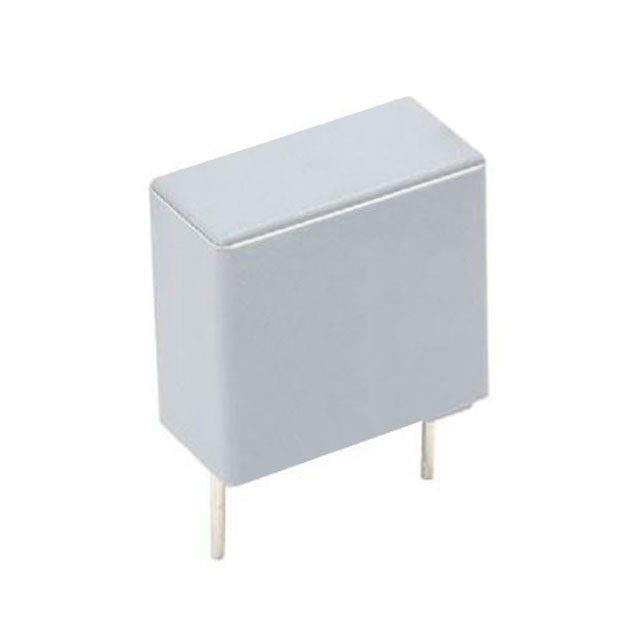

| Part number: | F340Y231030KFM2B0 |
| Description: | CAP FILM 10000PF 10% 1KVDC RAD |
| Manufacturer | Vishay BC Components |
| Encapsulation | Bulk |
| Quantity | 1250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±10% |
| Features | 85C/85% Humidity |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive; EMI, RFI Suppression |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200, Y2 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 305V |
| Voltage Rating - DC | 1000V (1kV) |
| Height - Seated (Max) | 0.437" (11.10mm) |
| Capacitance | 10000 pF |
| Size / Dimension | 0.689" L x 0.197" W (17.50mm x 5.00mm) |
|
