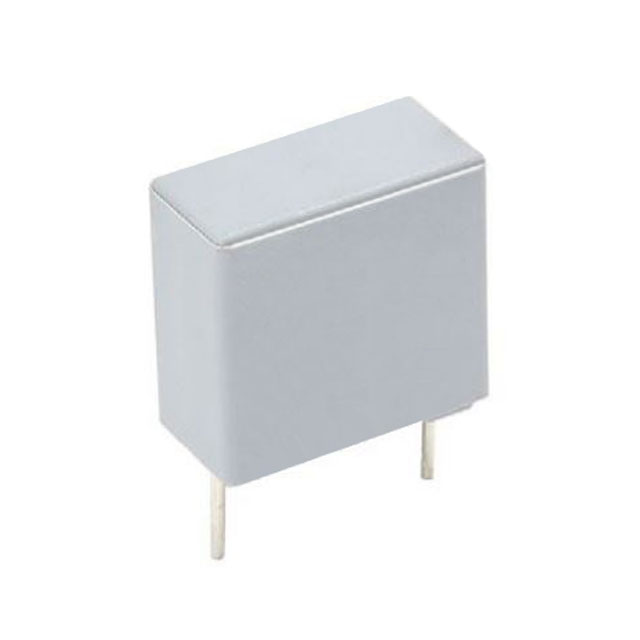

| Part number: | F340Y243330JIM2T0 |
| Description: | CAP FILM 0.33UF 5% 1KVDC RAD |
| Manufacturer | Vishay BC Components |
| Encapsulation | Bulk |
| Quantity | 110 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±5% |
| Features | 85C/85% Humidity |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive; EMI, RFI Suppression |
| Lead Spacing | 0.886" (22.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200, Y2 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 305V |
| Voltage Rating - DC | 1000V (1kV) |
| Height - Seated (Max) | 1.047" (26.60mm) |
| Capacitance | 0.33 µF |
| Size / Dimension | 1.043" L x 0.610" W (26.50mm x 15.50mm) |
|
