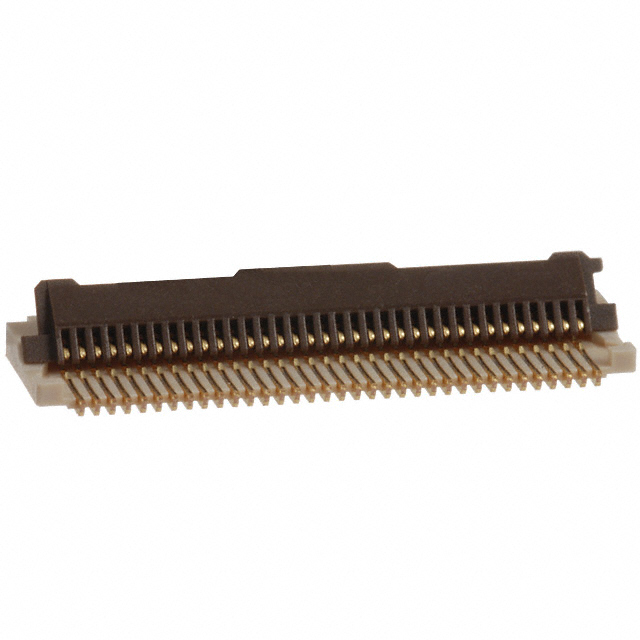

| Part number: | FH29-70S-0.2SHW(05) |
| Description: | CONN FPC BOTTOM 70POS 0.2MM R/A |
| Manufacturer | Hirose Electric Co., Ltd. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Hirose Electric Co., Ltd." |
| Features | Zero Insertion Force (ZIF) |
| Contact Finish | Gold |
| Voltage Rating | 40V |
| Current Rating (Amps) | 0.25A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 70 |
| Pitch | 0.008" (0.20mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.047" (1.20mm) |
| Contact Finish Thickness | Flash |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyamide (PA), Nylon |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.20mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tabbed |
| Housing Color | Beige |
| Actuator Color | Brown |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
|
