| Part number: | LMLP07C7M2R2DTAS |

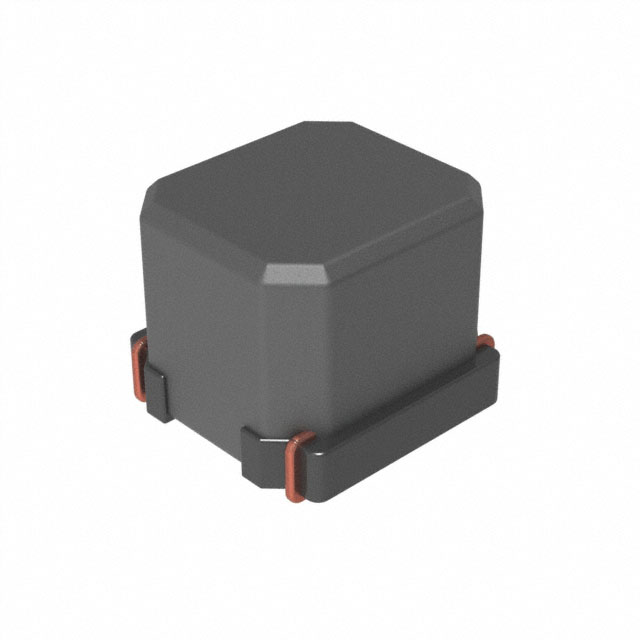

| Description: | FIXED IND 2.2UH 10A 12 MOHM SMD |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 12mOhm Max |
| Current - Saturation (Isat) | 14A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 10 A |
|
