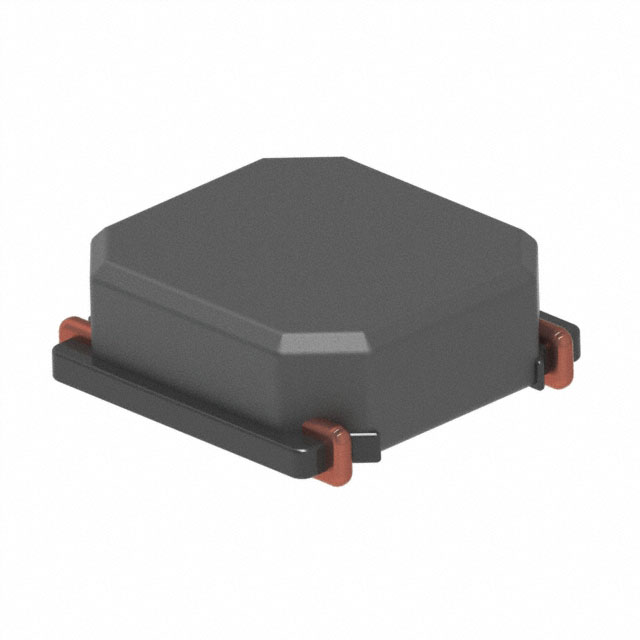

| Part number: | LMLP05A6MR47DTAS |
| Description: | FIXED IND 470NH 11.5A 8.6MOHM SM |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 8.6mOhm Max |
| Current - Saturation (Isat) | 18A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Inductance | 470 nH |
| Current Rating (Amps) | 11.5 A |
|
