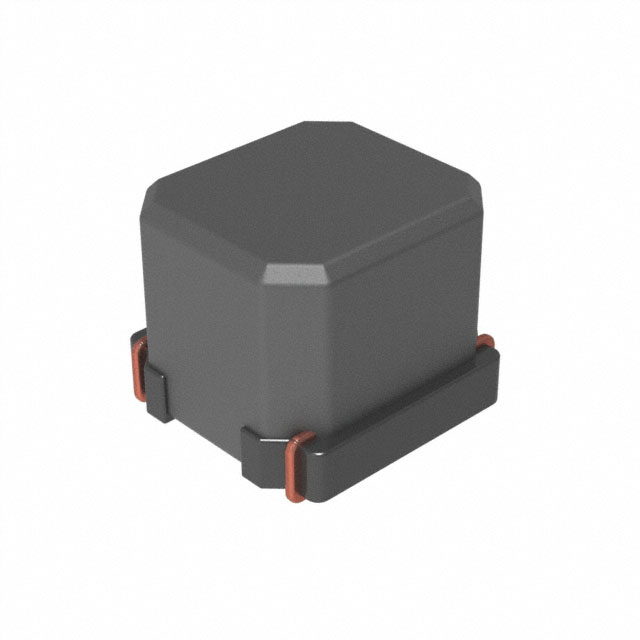

| Part number: | LMLP13B3M8R2DTAS |
| Description: | FIXED IND 8.2UH 10.5A 15.5 MOHM |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.531" L x 0.504" W (13.50mm x 12.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 15.5mOhm Max |
| Current - Saturation (Isat) | 16A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Inductance | 8.2 µH |
| Current Rating (Amps) | 10.5 A |
|
