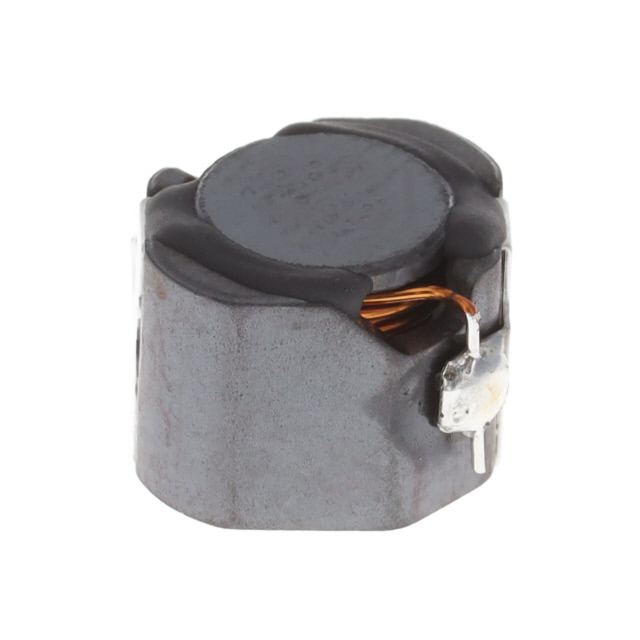

| Part number: | CDRH80D65BT150NP-680MC |
| Description: | FIXED IND 68UH 1.57A 131MOHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.339" L x 0.323" W (8.60mm x 8.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 150°C |
| DC Resistance (DCR) | 131mOhm |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 1.67A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.268" (6.80mm) |
| Inductance | 68 µH |
| Current Rating (Amps) | 1.57 A |
|
