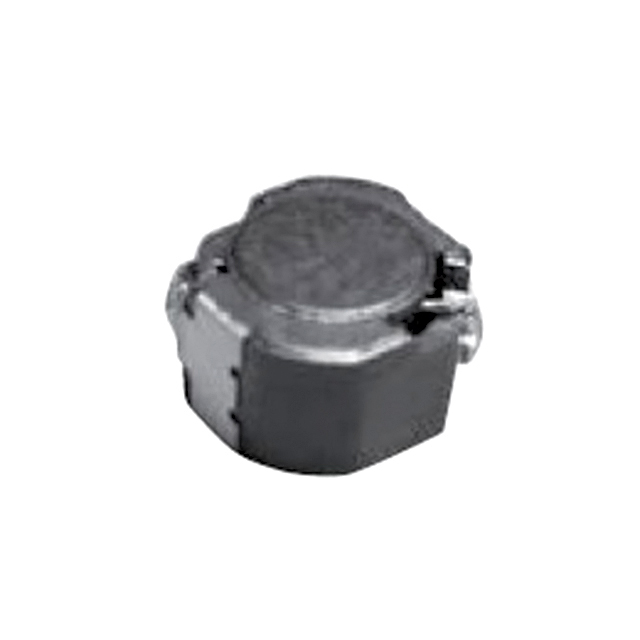

| Part number: | CDRH60D45BT150NP-6R8NC |
| Description: | FIXED IND 6.8UH 3.1A 35.1MOHM SM |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.260" L x 0.248" W (6.60mm x 6.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 150°C |
| DC Resistance (DCR) | 35.1mOhm |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 3.6A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Inductance | 6.8 µH |
| Current Rating (Amps) | 3.1 A |
|
