| Part number: | CDRH50D28BT150NP-150MC |

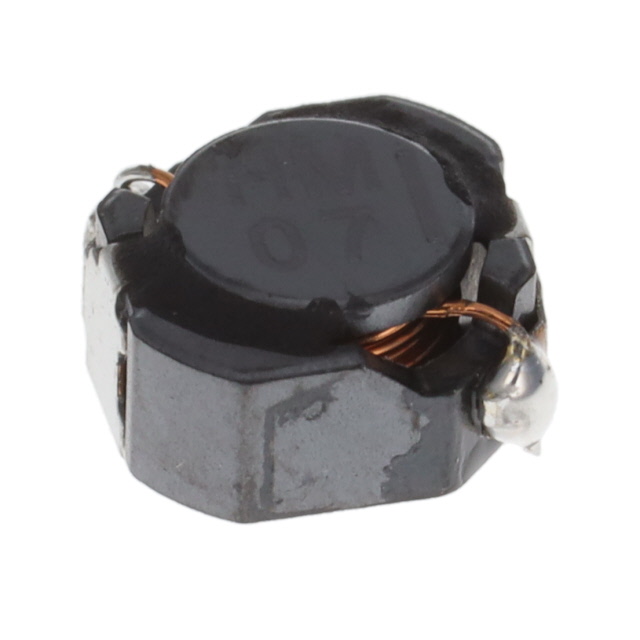

| Description: | FIXED IND 15UH 1.38A 130MOHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 150°C |
| DC Resistance (DCR) | 130mOhm |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 1.4A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Inductance | 15 µH |
| Current Rating (Amps) | 1.38 A |
|
