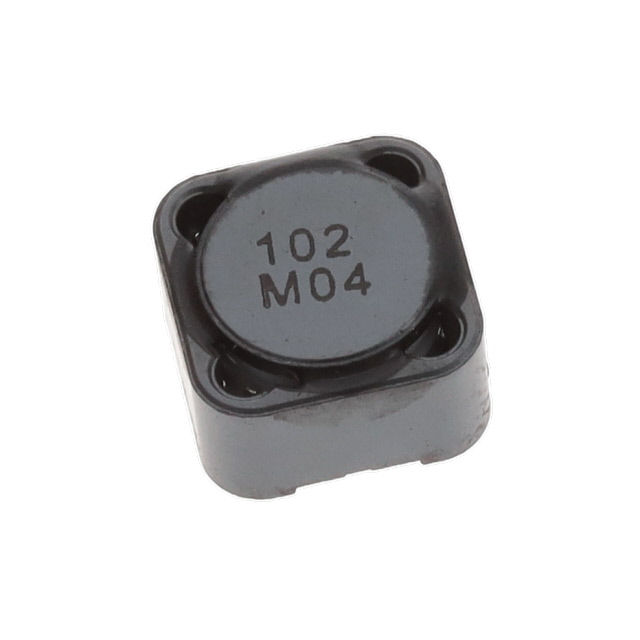

| Part number: | CDRH127L125NP-102MC |
| Description: | FIXED IND 1MH 640MA 1.495OHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 1.495Ohm Max |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 830mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Inductance | 1 mH |
| Current Rating (Amps) | 640 mA |
|
