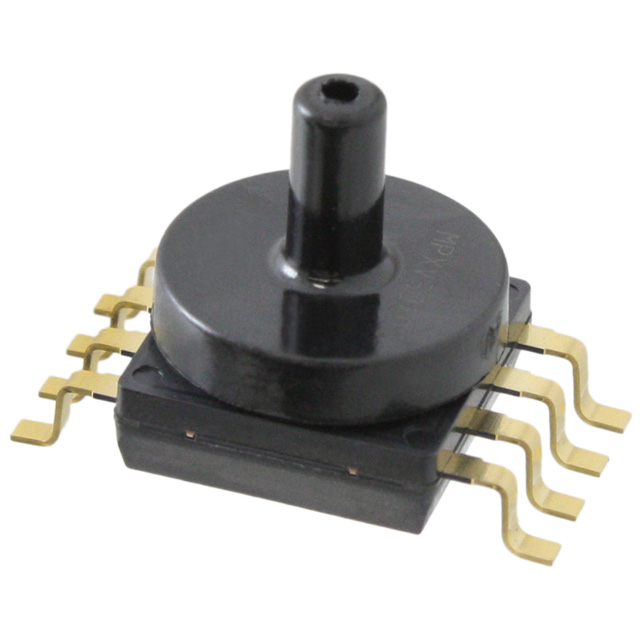

| Part number: | MPVZ5004GW6U |
| Description: | SENSOR 0.57PSIG 0.22" 4.9V |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |
| Features | Temperature Compensated |
| Package / Case | 8-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 1 V ~ 4.9 V |
| Operating Pressure | 0.57PSI (3.92kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±6.25% |
| Operating Temperature | 0°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.22" (5.59mm) Tube |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 2.32PSI (16kPa) |
|
