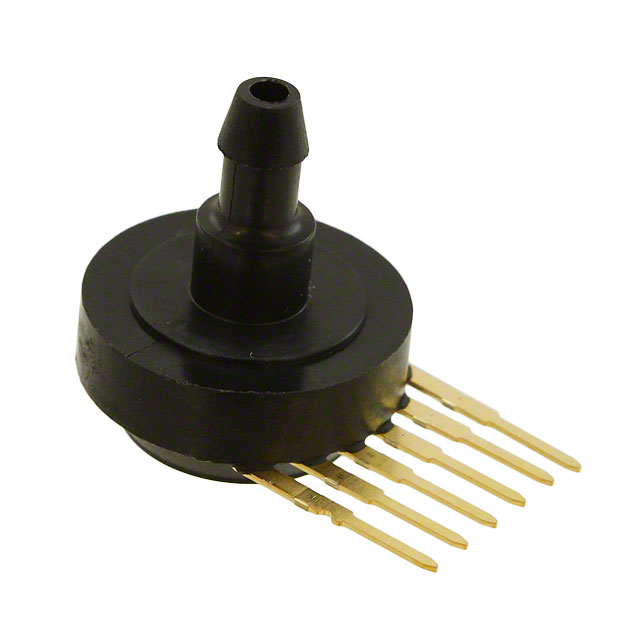

| Part number: | MPX4115AS |
| Description: | SENSOR 16.68PSIA 0.19" 4.8V |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |
| Features | Temperature Compensated |
| Package / Case | 6-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.2 V ~ 4.8 V |
| Operating Pressure | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) |
| Pressure Type | Absolute |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.85V ~ 5.35V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Applications | Board Mount |
| Port Style | Barbed |
| Maximum Pressure | 58.02PSI (400kPa) |
|
