| Part number: | SGC3S200NM |

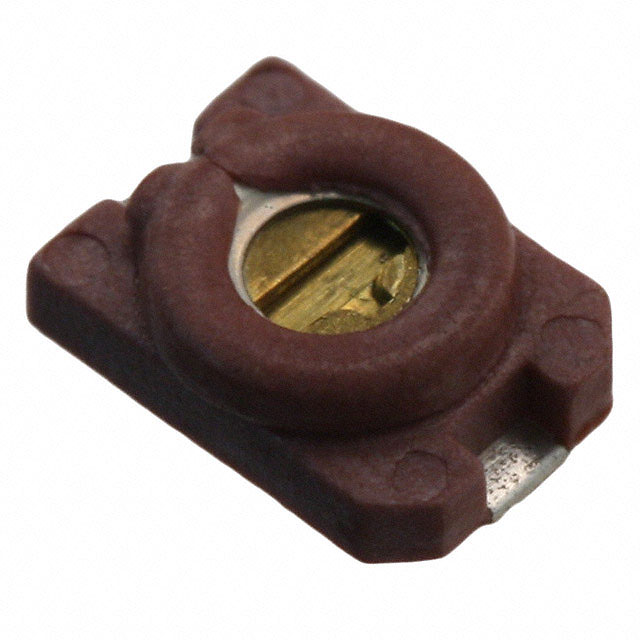

| Description: | CAP TRIMMER 5.5-20PF 100V SMD |
| Manufacturer | EW Electronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EW Electronics" |
| Features | Low Profile, Non-Magnetic |
| Adjustment Type | Top |
| Capacitance Range | 5.5 ~ 20pF |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Q @ Freq | 250 @ 1MHz |
| Dielectric Material | Ceramic |
| Height - Seated (Max) | 0.061" (1.54mm) |
| Voltage - Rated | 100 V |
|
